Rfid Hotel Electronic Door Locks L9106 / 9206-NFC Copper Plus Mirror Polish

BENEFITS

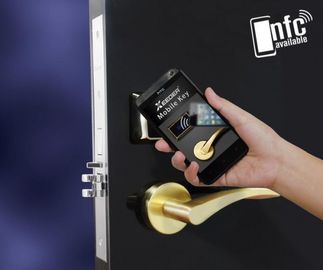

• Support (NFC available)Smart phone unlock
• Finish:Copper plus mirror polish
• Hidden style cylinder under the reader
• Hidden style battery pack inside the mortise easy to replace new.
• New design ONLY in Xeeder.
• RFID MIFARE technology,100,000 times write life for keycard, contactless reading keycard
• ANSI mortise
• Free-engage handle while locking
• Powered by AA battery,easy replace new
• Openings 20,000 times for one new battery pack
• Built-in buzzer and self-detect light.
• Low Battery Voltage warning(beep and red light)
• Audit trail records the latest 800 lock transactions.
• Passage mode activate by passage card for meeting case
• Do not disturb(DND) function for hotels:While thumb turn is on from inside, the lock will refuse the keycard outside by show red light
• Panic release function: the deadbolt and latch are automatically retracted by inside handle shaking to easy egress when emergency happens
• Xeeder Hotel Lock System required
• Each Xeeder hotel lock equipped double clock, control the guests check-in and departure time accurately, Make your management of rooms easily.

SPECIFICATIONS

• Model: Vienna-Origin
• Power: LR6 (AA)battery x 4pcs
• Low power alarm voltage:4.8V
• Communication: 13.56MHz RFID(with keycard)/infrared (with LMA or WDR)
• Card support: MIFARE S50 plus S70
• Working Distance: 45mm Max
• Working Tempreature: 0-60℃
• Working Humidity: 15~85%RH
• Static current: < 30uA
• Working current: < 150mA
• Memory: 800 Transactions include Time/Date/Card ID/Card type/Room ID
• Software: XEEDER Hotel lock system
• Gross Weight: 3.1KG
• Package: 10pcs/Carton at 74.0X42.0X32.0CM
• Content: Front handle,Back panel,mortise,cylinder,keyx2,battery-pack,manual/Strike
  (no battery included, no card)

USEAGE

• Guest card: Reception complete program Guest card by give a begin and expiry date for a room(rooms). Guest access room by read this card on lock
• Master card:Hold by housekeeping to access to all rooms of hotels
• Floor card: Hold by clean staff to enter the rooms in one floor.
• Building card: Hold by manager to enter the rooms in one building
• Passage card: Once this card been read on one door, this door could be acceess by without reading keycard
• Emergency card: Enter the all rooms
