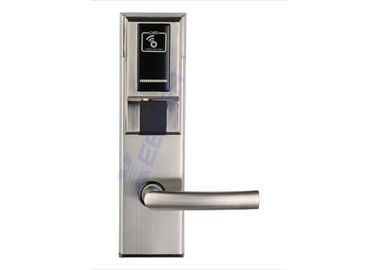

ANSI Mortise Electronic Front Door Lock Stainless Steel 304 Material

I'm Online Chat Now

ANSI Mortise Electronic Front Door Lock Stainless Steel 304 Material

Detailed Product Description
Model: L1218Y Material: Stainless Steel,304
Application: Hotel Room Door Color: Silver
Warranty: 2 Years Product Name: Hotel Electronic Door Lock Germany



BENEFITS



Stainless steel panel
RFID MIFARE technology,100,000 times write life for keycard, contactless reading keycard
ANSI mortise
Free-engage while locking
Mechanical Key override function

Mifare 1K S50 card required / Support RFID card,Mifare 4K S70 card
Audit trail records the latest 800 lock transactions.
Low Battery Voltage warning(beep and red light)
Passage mode activate by passage card for meeting case
DND function enabled
Panic release function: the deadbolt and latch are automatically retracted by inside handle shaking to easy egress when emergency happens
Xeeder Hotel Lock System required
40mm-50mm thickness door
Each Xeeder hotel lock equipped double clock, control the guests check-in and departure time accurately, Make your management of rooms easily.




SPECIFICATIONS



Model: L1218Y
Power: LR6 (AA)battery x 4pcs
Low power alarm voltage:4.8V
Communication: 13.56MHz RFID(with keycard)/infrared (with LMA or WDR)
Card support: MIFARE S50/S70 (1K,4K)
Working Distance: 45mm Max
Working Tempreature: 0-60℃
Working Humidity: 15~85%RH
Static current: < 30uA
Working current: < 150mA
Memory: 800 Transactions include Time/Date/Card ID/Card type/Room ID
Software: XEEDER Hotel lock system?
Gross Weight: 3.1KG
Package: 10pcs/Carton at 74.0X42.0X32.0CM
Content: Front/Back panel,mortise,cylinder,keyx2,battery-pack,manual/Strike
(no battery included, no card)


USEAGE



Guest card: Reception complete program Guest card by give a begin and expiry date for a room(rooms). Guest access room by read this card on lock
Master card:Hold by housekeeping to access to all rooms of hotels
Floor card: Hold by clean staff to enter the rooms in one floor.
Building card: Hold by manager to enter the rooms in one building
Passage card: Once this card been read on one door, this door could be acceess by without reading keycard
Emergency card: Enter the all rooms
