Free Engage Hotel Card Lock EURO Mortise Working Tempreature 0-60 ℃

I'm Online Chat Now

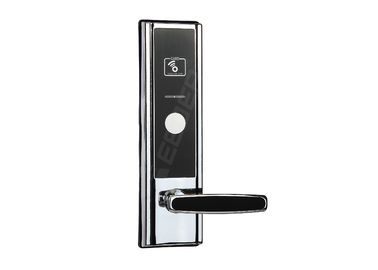

Free Engage Hotel Card Lock EURO Mortise Working Tempreature 0-60 ℃

Detailed Product Description
Model: L1822LL Material: Stainless Steel
Warranty: 3 Year Weight: 2.5kg,600g,3kg
Product Name: Digital Hotel Smart Key Card Door Lock Color: Silver/Gold




Model: L1822LL
Power: LR6 (AA)battery x 4pcs
Low power alarm voltage:4.8V
Communication: 13.56MHz RFID(with keycard)/infrared (with LMA or WDR)
Card support: MIFARE S50/S70 (1K,4K)
Working Distance: 45mm Max
Working Tempreature: 0-60℃
Working Humidity: 15~85%RH
Static current: < 30uA
Working current: < 150mA
Memory: 800 Transactions include Time/Date/Card ID/Card type/Room ID
Software: XEEDER Hotel lock system?
Gross Weight: 3.1KG
Package: 10pcs/Carton at 74.0X42.0X32.0CM
Content: Front/Back panel,mortise,cylinder,keyx2,battery-pack,manual/Strike
(no battery included, no card)






Stainless steel panel
RFID MIFARE technology,100,000 times write life for keycard, contactless reading keycard
ANSI mortise

Free-engage while locking
Mechanical Key override function
Powered by AA battery,easy for replace
Openings 20,000 times for one new battery pack


Optional ANSI,EURO mortise
DND function enabled
Work on Xeeder Hotel System

Do not disturb(DND)function for hotels:While thumb turn is on from inside,the lock will refuse the keycard outside by show red light
Panic release function: the deadbolt and latch are automatically retracted by inside handle shaking to easy egress when emergency happens
Xeeder Hotel Lock System required
40mm-50mm thickness door
