RFID Hotel Card Lock 40mm-50mm Thickness Dual-RTC Chip Technology

I'm Online Chat Now

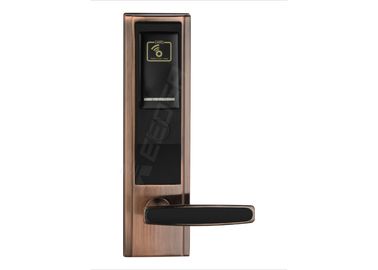

RFID Hotel Card Lock 40mm-50mm Thickness Dual-RTC Chip Technology

Detailed Product Description
Model: L1821HGH Material: Stainless Steel
Product Name: Hotel Lock Warranty: 3 Year
Size: 285mm*74.5mm*13mm,240*78mm Weight: 2.5kg,600g,3kg




Model: L1821HGH
Power: LR6 (AA)battery x 4pcs
Low power alarm voltage:4.8V
Communication: 13.56MHz RFID(with keycard)/infrared (with LMA or WDR)
Card support: MIFARE S50/S70 (1K,4K)
Working Distance: 45mm Max
Working Tempreature: 0-60℃
Working Humidity: 15~85%RH
Static current: < 30uA
Working current: < 150mA
Memory: 800 Transactions include Time/Date/Card ID/Card type/Room ID
Software: XEEDER Hotel lock system?
Gross Weight: 3.1KG
Package: 10pcs/Carton at 74.0X42.0X32.0CM
Content: Front/Back panel,mortise,cylinder,keyx2,battery-pack,manual/Strike
(no battery included, no card)






Waterproof control PCB

Open Ways:RFID Card, Smart cell Phone, Mechanical Key
ANSI mortise
Free-engage while locking
Mechanical Key override function
Powered by AA battery,easy for replace
More than 20,000 open door times for one battery pack life cycle
Support RFID card,Mifare 4K S70 card
Audit trail records the latest 800 lock transactions.
Low battery alarm(below 4.8V)
Passage mode activate by passage card for meeting case
DND function enabled
Panic release function: the deadbolt and latch are automatically retracted by inside handle shaking to easy egress when emergency happens
Xeeder Hotel Lock System required
40mm-50mm thickness doorEnhanced Dual-RTC chip technology
Waterproof control PCB
