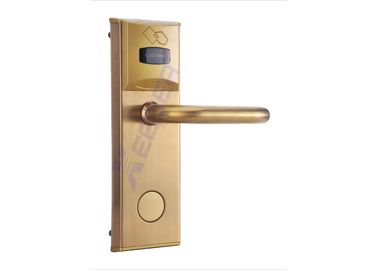

Hotel Style Door Lock L1101JS-1# , Hotel Card Lock Mifare 1K S50 Xeeder System

I'm Online Chat Now

Hotel Style Door Lock L1101JS-1# , Hotel Card Lock Mifare 1K S50 Xeeder System

Detailed Product Description
Model: L1101JS-1# Material: Stainless Steel,304
Application: Hotel Room Door Warranty: 2 Years
Color: Gold Unlock Method: Mechinical Key And Cards



BENEFITS



Stainless steel panel
RFID MIFARE technology,100,000 times write life for keycard, contactless reading keycard
ANSI mortise
Free-engage while locking
Mechanical Key override function
Powered by AA battery,easy for replace
Openings 20,000 times for one new battery pack
Mifare 1K S50 card required
Audit trail records the latest 800 lock transactions.

DND function enabled
Work on Xeeder Hotel System
Store latest 800 lock transactions,wireless portable device collect lock events.
Passage mode setting available
Support RFID card,Mifare 4K S70 card
Low battery alarm(below 4.8V)
Enhanced Dual-RTC chip technology
Waterproof control PCB


SPECIFICATIONS



Model: L1101JS-1#
Power: LR6 (AA)battery x 4pcs
Low power alarm voltage:4.8V
Communication: 13.56MHz RFID(with keycard)/infrared (with LMA or WDR)
Card support: MIFARE S50/S70 (1K,4K)
Working Distance: 45mm Max
Working Tempreature: 0-60℃
Working Humidity: 15~85%RH
Static current: < 30uA
Working current: < 150mA
Memory: 800 Transactions include Time/Date/Card ID/Card type/Room ID
Software: XEEDER Hotel lock system?
Gross Weight: 3.1KG
Package: 10pcs/Carton at 74.0X42.0X32.0CM
Content: Front/Back panel,mortise,cylinder,keyx2,battery-pack,manual/Strike
(no battery included, no card)


USEAGE



Guest card: Reception complete program Guest card by give a begin and expiry date for a room(rooms). Guest access room by read this card on lock
Master card:Hold by housekeeping to access to all rooms of hotels
Floor card: Hold by clean staff to enter the rooms in one floor.
Building card: Hold by manager to enter the rooms in one building
Passage card: Once this card been read on one door, this door could be acceess by without reading keycard
Emergency card: Enter the all rooms
