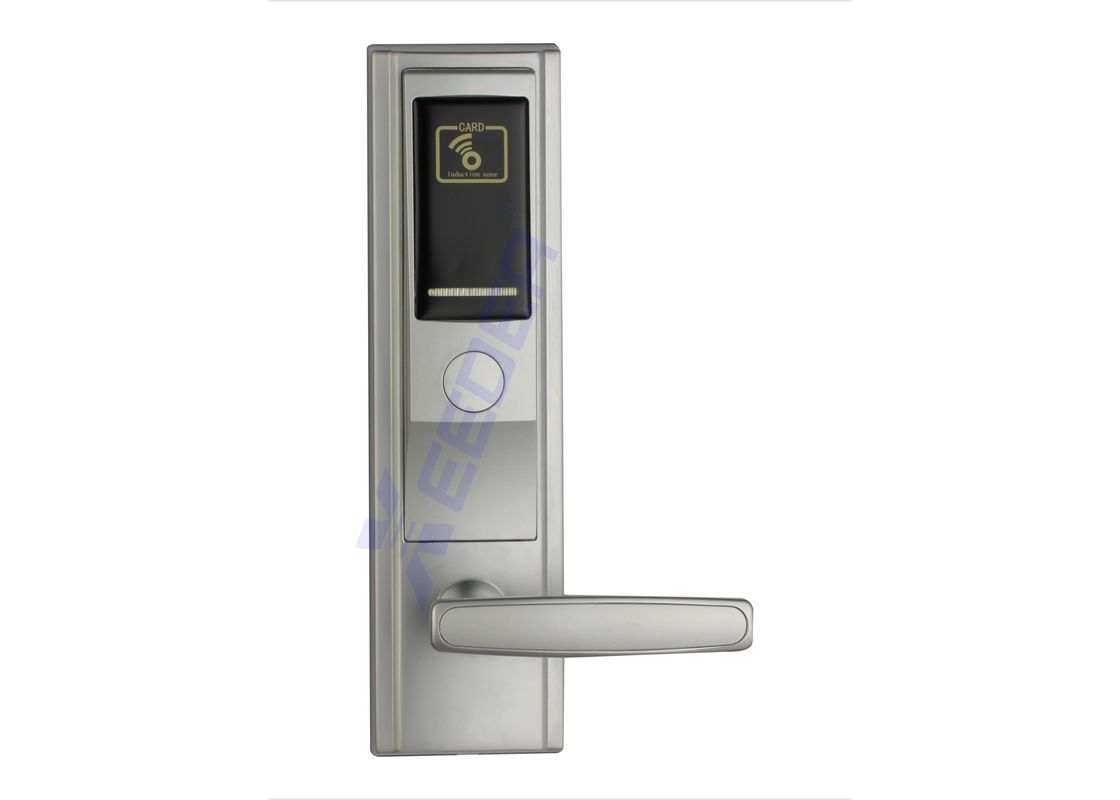

L1821Y Hotel Card Lock Stainless Steel Material Working Humidity 15~85% RH

SPECIFICATIONS

Model: L1821Y
Power: LR6 (AA)battery x 4pcs
Low power alarm voltage:4.8V
Communication: 13.56MHz RFID(with keycard)/infrared (with LMA or WDR)
Card support: MIFARE S50/S70 (1K,4K)
Working Distance: 45mm Max
Working Tempreature: 0-60℃
Working Humidity: 15~85%RH
Static current: < 30uA
Working current: < 150mA
Memory: 800 Transactions include Time/Date/Card ID/Card type/Room ID
Software: XEEDER Hotel lock system?
Gross Weight: 3.1KG
Package: 10pcs/Carton at 74.0X42.0X32.0CM
Content: Front/Back panel,mortise,cylinder,keyx2,battery-pack,manual/Strike
(no battery included, no card)

BENEFITS

Waterproof control PCB

Open Ways:RFID Card, Smart cell Phone, Mechanical Key
ANSI mortise
Free-engage while locking
Mechanical Key override function
Powered by AA battery,easy for replace
More than 20,000 open door times for one battery pack life cycleOpenings 20,000 times for one new battery pack
Mifare 1K S50 card required
Audit trail records the latest 800 lock transactions.
Low Battery Voltage warning(beep and red light)
Passage mode activate by passage card for meeting case
Do not disturb(DND)function for hotels:While thumb turn is on from inside,the lock will refuse the keycard outside by show red light
Panic release function: the deadbolt and latch are automatically retracted by inside handle shaking to easy egress when emergency happens
Xeeder Hotel Lock System required
40mm-50mm thickness door
Each Xeeder hotel lock equipped double clock, control the guests check-in and departure time accurately, Make your management of rooms easily.
