Detailed Product Description

Molde:	L5215-M1 Hotel Lock	Color:	Silver
Suitable For:	PVC Door/ Glass Door	Warranty:	2 Years
Mortise:	ANSI Standard Mortise	Finish:	Satin Or Polish,Stainless Steel

Product

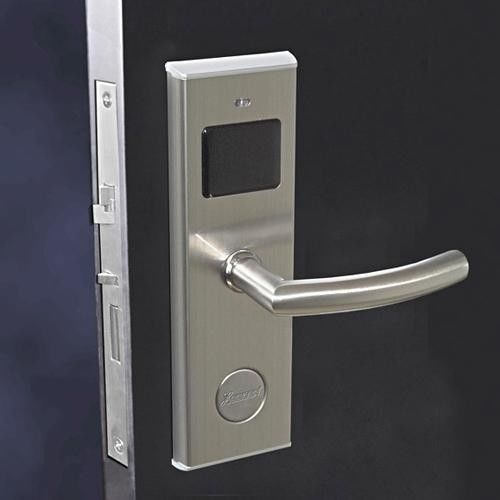

L5215-M1 hotel lock

L5215-M1 hotel lock

BENEFITS

Finish: Stainless steel wire drawing
Stainless steel panel and handle
RFID MIFARE technology,100,000 times write life for keycard, contactless reading keycard
Euro mortise
Openings 20,000 times for one new battery pack
Auto deadbolt
Free-engage handle while locking
Passage mode activate by passage card for meeting case
Do not disturb(DND) function for hotels:While thumb turn is on from inside, the lock will refuse the keycard outside by show red light
Panic release function: the deadbolt and latch are automatically retracted by inside handle shaking to easy egress when emergency happens
Xeeder Hotel Lock System required
30mm-35mm thickness door
Each Xeeder hotel lock equipped double clock, control the guests check-in and departure time accurately, Make your management of rooms easily.

SPECIFICATIONS

Model: L5215M1
Power: LR6 (AA)battery x 4pcs
Low power alarm voltage:4.8V
Communication: 13.56MHz RFID(with keycard)/infrared (with LMA or WDR)
Card support: MIFARE S50 plus S70
Working Distance: 45mm Max
Working Tempreature: 0-60℃
Working Humidity: 15~85%RH
Static current: < 30uA
Working current: < 150mA
Memory: 800 Transactions include Time/Date/Card ID/Card type/Room ID
Software: XEEDER Hotel lock system
Gross Weight: 2.3KG
Package: 6pcs/Carton at 50.0X42.0X33.0CM
Content: Front/Back panel,mortise,cylinder,keyx2,battery-pack,manual/Strike
(no battery included, no card)

USEAGE

Guest card: Reception complete program Guest card by give a begin and expiry date for a room(rooms). Guest access room by read this card on lock
Master card:Hold by housekeeping to access to all rooms of hotels
Floor card: Hold by clean staff to enter the rooms in one floor.
Building card: Hold by manager to enter the rooms in one building
Passage card: Once this card been read on one door, this door could be acceess by without reading keycard
Emergency card: Enter the all rooms
