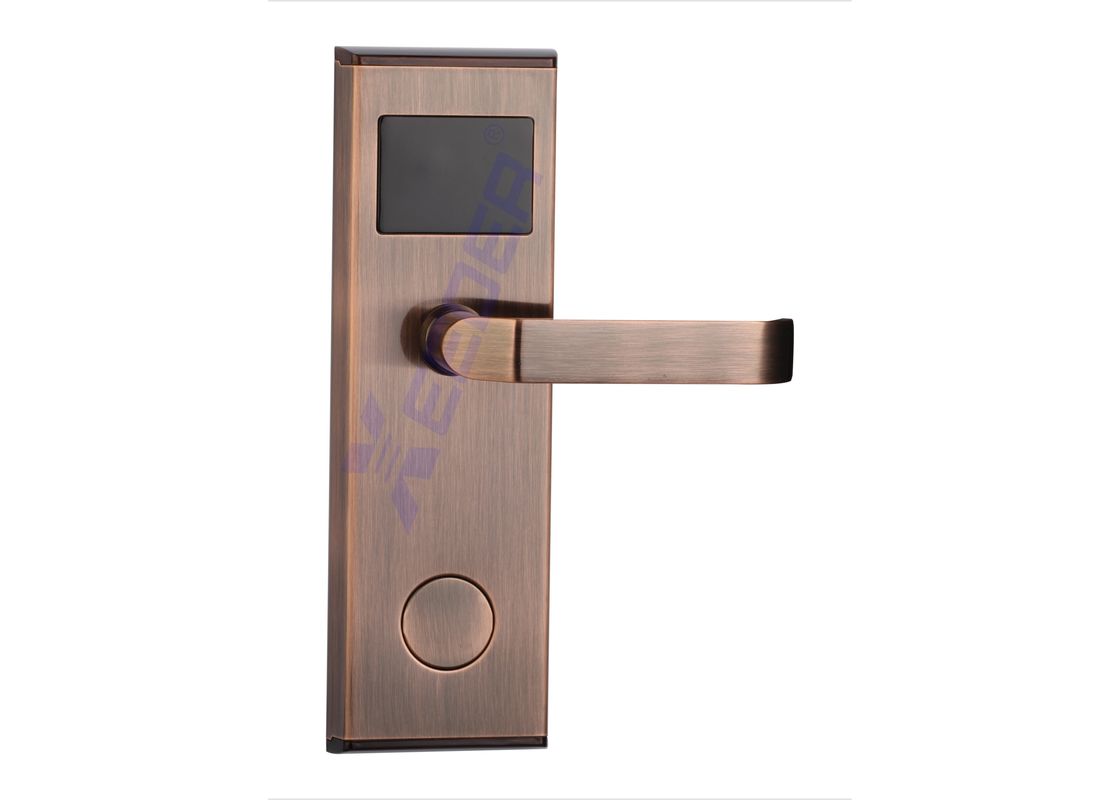

L1100QGH Hotel Door Locks RFID MIFARE Technology Free Engage While Locking

BENEFITS

RFID MIFARE technology,100,000 times write life for keycard, contactless reading keycard
ANSI mortise
Free-engage while locking
Mechanical Key override function

Passage mode activate by passage card for meeting case
Do not disturb(DND)function for hotels:While thumb turn is on from inside,the lock will refuse the keycard outside by show red light
Panic release function: the deadbolt and latch are automatically retracted by inside handle shaking to easy egress when emergency happens
Xeeder Hotel Lock System required
40mm-50mm thickness door
Each Xeeder hotel lock equipped double clock, control the guests check-in and departure time accurately, Make your management of rooms easily.

Open Ways:RFID Card, Smart cell Phone, Mechanical Key
Mortise with panic release function
Optional ANSI,EURO mortise
DND function enabled
Work on Xeeder Hotel System


SPECIFICATIONS

Model: L1100QGH
Power: LR6 (AA)battery x 4pcs
Low power alarm voltage:4.8V
Communication: 13.56MHz RFID(with keycard)/infrared (with LMA or WDR)
Card support: MIFARE S50/S70 (1K,4K)
Working Distance: 45mm Max
Working Tempreature: 0-60℃
Working Humidity: 15~85%RH
Static current: < 30uA
Working current: < 150mA
Memory: 800 Transactions include Time/Date/Card ID/Card type/Room ID
Software: XEEDER Hotel lock system?
Gross Weight: 3.1KG
Package: 10pcs/Carton at 74.0X42.0X32.0CM
Content: Front/Back panel,mortise,cylinder,keyx2,battery-pack,manual/Strike
(no battery included, no card)

USEAGE

Guest card: Reception complete program Guest card by give a begin and expiry date for a room(rooms). Guest access room by read this card on lock
Master card:Hold by housekeeping to access to all rooms of hotels
Floor card: Hold by clean staff to enter the rooms in one floor.
Building card: Hold by manager to enter the rooms in one building
Passage card: Once this card been read on one door, this door could be acceess by without reading keycard
Emergency card: Enter the all rooms
