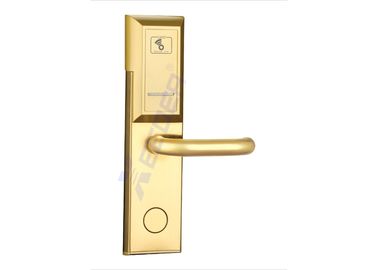

Gold Color Hotel Door Locks , Hotel Room Security Door Locks L1102JS

I'm Online Chat Now

Gold Color Hotel Door Locks , Hotel Room Security Door Locks L1102JS

Detailed Product Description
Model: L1102JS Material: Stainless Steel,304
Product Name: Digital Hotel Smart Key Card Door Lock Application: Hotel Room Door
Color: Gold Usage: Home/Hotel,Wooden Door/ Glass Door/ Metal Door



BENEFITS



Stainless steel panel
RFID MIFARE technology,100,000 times write life for keycard, contactless reading keycard

Mechanical Key override function
Powered by AA battery,easy for replace
Openings 20,000 times for one new battery pack
Mifare 1K S50 card required
Audit trail records the latest 800 lock transactions.

40mm-50mm thickness door
Each Xeeder hotel lock equipped double clock, control the guests check-in and departure time accurately, Make your management of rooms easily.




Indicate : Light,Sound(Mute,Beep or Music optional)
Altra low power consumption:4 Standard AA alkaline batteries, 18 months in normal state
More than 20,000 open door times for one battery pack life cycle

DND function enabled
Work on Xeeder Hotel System
Store latest 800 lock transactions,wireless portable device collect lock events.
Passage mode setting available



SPECIFICATIONS



Model: L1102JS
Power: LR6 (AA)battery x 4pcs
Low power alarm voltage:4.8V
Communication: 13.56MHz RFID(with keycard)/infrared (with LMA or WDR)
Card support: MIFARE S50/S70 (1K,4K)
Working Distance: 45mm Max
Working Tempreature: 0-60℃
Working Humidity: 15~85%RH
Static current: < 30uA
Working current: < 150mA
Memory: 800 Transactions include Time/Date/Card ID/Card type/Room ID
Software: XEEDER Hotel lock system?
Gross Weight: 3.1KG
Package: 10pcs/Carton at 74.0X42.0X32.0CM
Content: Front/Back panel,mortise,cylinder,keyx2,battery-pack,manual/Strike
(no battery included, no card)


USEAGE



Guest card: Reception complete program Guest card by give a begin and expiry date for a room(rooms). Guest access room by read this card on lock
Master card:Hold by housekeeping to access to all rooms of hotels
Floor card: Hold by clean staff to enter the rooms in one floor.
Building card: Hold by manager to enter the rooms in one building
Passage card: Once this card been read on one door, this door could be acceess by without reading keycard
Emergency card: Enter the all rooms
