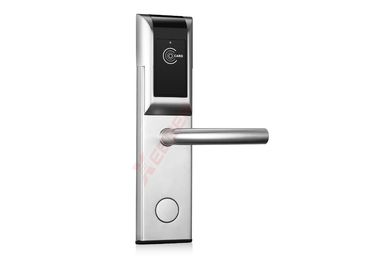

Smart Hotel Style Door Security Lock , Rfid Key Card Door Lock System

Smart Hotel Style Door Security Lock , Rfid Key Card Door Lock System

Hotel Style Door Security Lock Features

1. Advanced Software: management software supports multiple languages, and they can be switched
freely inside software, which is suitable for international hotel management. Hotel lock system Software
can work at the same time on different PCs with database shared, so does card issuing, which is
efficient, and speed up check in and check out in rush hours so as to satisfy guests.

2. Safe Data: key data in hotel lock system use 1-DES or 3-DES encryption, by IBM, DES is a standard
for commercial data encryption of US National Bureau of Standards, has always been popular and
played a important role in international secure communication. Basically customers don’t care if their
system use 3-DES encryption of not, even with encryption or not since products all good. But XEEDER
hotel lock system can promise not only normal use, but also security and reliability.

3. Open Software Interface: hotel lock system interface use Microsoft VC++ to develop, standard
open interface, support WIN32. SDK is also available, with details of specifications and parameters, and
examples for different development platforms such as PB, VB, DELPHI, and so on, easy to integrate with
other PMS.

4. Stable And Flexible Software: hotel lock system software use Microsoft ADO for database,
Access or SQL server, Oracle, which are stable and high efficiency. ADO (Active X Data Objects) is a
data access engine of Microsoft, which is highly flexible and it can link to different data providers with
same programming model. In other words, it’s an open system, convenient to access other database
vendors’ database, such as Oracle, Sybase, leaving space for system expansion and upgrades.

Hotel Style Door Security Lock Characteristic:

Double clocks for hundred percent gurranty. Clocks inside and outside CPU, adjust with each other.
Why double clocks?
Clocks are indispensable part of hotel lock, they are so important that if clocks lost or stop the wrong time
will bring inconvenience to guests and loss to hotel. Once clocks go wrong, it might cause: guest cannot
open door, hotel cannot control the time for guest card to unlock, time information in opening records is a
mess and if stealing happened, things get worse.
The main reason that clocks lost or go incorrect due to special environment of hotel: interfere from
mobile phones, vacuum cleaner, etc; Components error, especially crystal oscillator; defects of clocks
components.
To solve this, XEEDER use double clocks, with special ‘clock visiting’ system as the following diagram:

Clock A use RTC, clock B use IC, when A stops, access signal finds A doesn’t equal B, then turn to clock B
and output the correct clock and adjust clock A, and pause A. Vice versa. It continuous visiting and
comparison and mutual adjust will ensure the correct time.

Hotel Style Door Security Lock SPECIFICATIONS

Static current: < 30uA
Working current: < 150mA
Memory: 800 Transactions include Time/Date/Card ID/Card type/Room ID
Software: XEEDER Hotel lock system
Gross Weight: 3.1KG
Package: 10pcs/Carton at 74.0X42.0X32.0CM
Content: Front/Back panel,mortise,cylinder,keyx2,battery-pack,manual/Strike
(no battery included, no card)

Hotel Style Door Security Lock USEAGE

Floor card: Hold by clean staff to enter the rooms in one floor.
Building card: Hold by manager to enter the rooms in one building
Passage card: Once this card been read on one door, this door could be acceess by without reading keycard
Emergency card: Enter the all rooms
