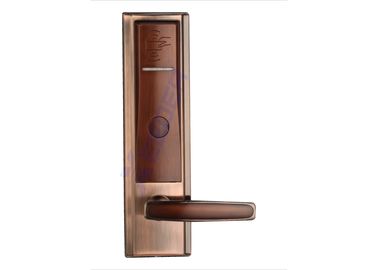

Gold Hotel Card Lock Optional ANSI More Than 20000 Open 2 Years Warranty

SPECIFICATIONS

Model: L1820HGS
Power: LR6 (AA)battery x 4pcs
Low power alarm voltage:4.8V
Communication: 13.56MHz RFID(with keycard)/infrared (with LMA or WDR)
Card support: MIFARE S50/S70 (1K,4K)
Working Distance: 45mm Max
Working Tempreature: 0-60℃
Working Humidity: 15~85%RH
Static current: < 30uA
Working current: < 150mA
Memory: 800 Transactions include Time/Date/Card ID/Card type/Room ID
Software: XEEDER Hotel lock system?
Gross Weight: 3.1KG
Package: 10pcs/Carton at 74.0X42.0X32.0CM
Content: Front/Back panel,mortise,cylinder,keyx2,battery-pack,manual/Strike
(no battery included, no card)

BENEFITS

Indicate : Light,Sound(Mute,Beep or Music optional)
Altra low power consumption:4 Standard AA alkaline batteries, 18 months in normal state
More than 20,000 open door times for one battery pack life cycle
Easy replace battery pack design
Open Ways:RFID Card, Smart cell Phone, Mechanical Key
Mortise with panic release function
Optional ANSI,EURO mortise
DND function enabled
Work on Xeeder Hotel System
Store latest 800 lock transactions,wireless portable device collect lock events.
Passage mode setting available
Support RFID card,Mifare 4K S70 card
Low battery alarm(below 4.8V)
Enhanced Dual-RTC chip technology
Waterproof control PCB

USEAGE

Guest card: Reception complete program Guest card by give a begin and expiry date for a room(rooms). Guest access room by read this card on lock
Master card:Hold by housekeeping to access to all rooms of hotels
Floor card: Hold by clean staff to enter the rooms in one floor.
Building card: Hold by manager to enter the rooms in one building
Passage card: Once this card been read on one door, this door could be acceess by without reading keycard
Emergency card: Enter the all rooms
