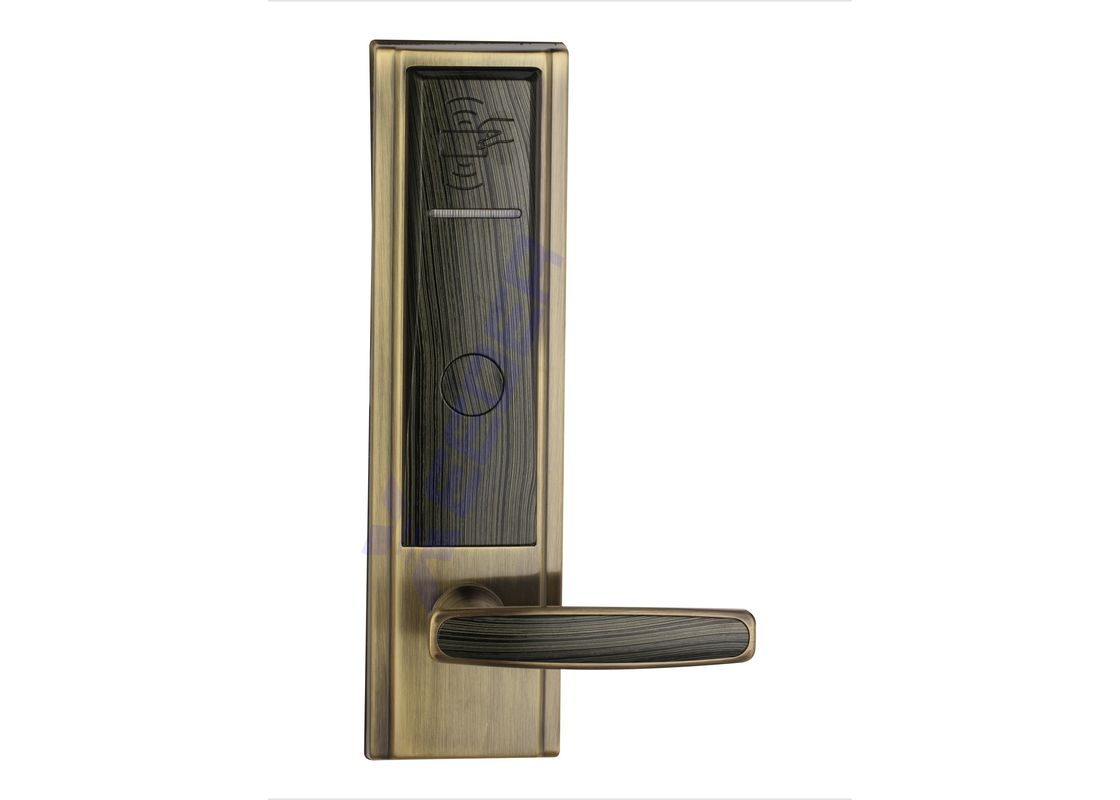

L1820QGS Hotel Card Lock , Smart Card Hotel Door Lock MIFARE S50 / S70

SPECIFICATIONS

Model: L1820QGS
Power: LR6 (AA)battery x 4pcs
Low power alarm voltage:4.8V
Communication: 13.56MHz RFID(with keycard)/infrared (with LMA or WDR)
Card support: MIFARE S50/S70 (1K,4K)
Working Distance: 45mm Max
Working Tempreature: 0-60℃
Working Humidity: 15~85%RH
Static current: < 30uA
Working current: < 150mA
Memory: 800 Transactions include Time/Date/Card ID/Card type/Room ID
Software: XEEDER Hotel lock system?
Gross Weight: 3.1KG
Package: 10pcs/Carton at 74.0X42.0X32.0CM
Content: Front/Back panel,mortise,cylinder,keyx2,battery-pack,manual/Strike
(no battery included, no card)

BENEFITS

Stainless steel panel
RFID MIFARE technology,100,000 times write life for keycard, contactless reading keycard
ANSI mortise
Free-engage while locking
Mechanical Key override function
Powered by AA battery,easy for replace
Openings 20,000 times for one new battery pack
Mifare 1K S50 card required
Audit trail records the latest 800 lock transactions.
Low Battery Voltage warning(beep and red light)
Passage mode activate by passage card for meeting case
Do not disturb(DND)function for hotels:While thumb turn is on from inside,the lock will refuse the keycard outside by show red light
Panic release function: the deadbolt and latch are automatically retracted by inside handle shaking to easy egress when emergency happens
Xeeder Hotel Lock System required
40mm-50mm thickness door
Each Xeeder hotel lock equipped double clock, control the guests check-in and departure time accurately, Make your management of rooms easily.

Indicate : Light,Sound(Mute,Beep or Music optional)
Altra low power consumption:4 Standard AA alkaline batteries, 18 months in normal state
More than 20,000 open door times for one battery pack life cycle
Easy replace battery pack design
Open Ways:RFID Card, Smart cell Phone, Mechanical Key
Mortise with panic release function
Optional ANSI,EURO mortise
DND function enabled
Work on Xeeder Hotel System
Store latest 800 lock transactions,wireless portable device collect lock events.
Passage mode setting available
Support RFID card,Mifare 4K S70 card
Low battery alarm(below 4.8V)
Enhanced Dual-RTC chip technology
Waterproof control PCB
