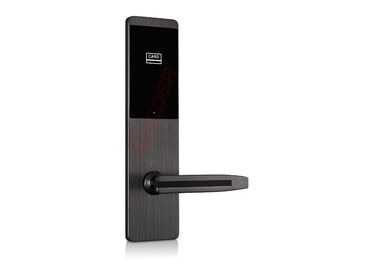

ANSI Mortise Key Card Door Lock System , Hotel Room Lock System Built In Buzzer

ANSI Mortise Key Card Door Lock System , Hotel Room Lock System Built In Buzzer

Door Lock Communicate With Computer:

1. Mutual communication: PC can send command and data to lock via LA173, door lock can also send data to PC
2. Door lock data operation on PC: PC can issue card, delete card and update time to lock via LA173, etc.
3. Remote control from PC to lock: PC can remotely unlock a door and keep unlocked, door lock can restore after card reading. PC can also remotely lock a door.
4. Information exchange between PC and lock: PC check lock and lock battery status via LA173, or search card information in a lock.
5. Uploading of lock data: unlocking records will be sent to PC when unlocked, card number, unlocking time, which is convenient for receptionist to monitor in real-time. Lock upload lock and battery status in real-time to PC.
6. PC adjust lock time: PC can check lock time via LA173, then adjust the time to make sure records arecorrect.
7. Emergency: Available link with fire alarm system, burglar alarm system. When fire on, lock for related area will unlock, when burglar alarm on, then unlock the doors of related areas.

Key Card Door Lock System SPECIFICATIONS

• Model: L1825H Key Card Door Lock System
• Power: LR6 (AA)battery x 4pcs
• Low power alarm voltage:4.8V
• Communication: 13.56MHz RFID(with keycard)/infrared (with LMA or WDR)
• Card support: MIFARE® S50 plus S70
• Working Distance: 45mm Max
• Memory: 800 Transactions include Time/Date/Card ID/Card type/Room ID
• Software: XEEDER Hotel lock system™
• Gross Weight: 3.8KG
• Package: 9pcs/Carton at 74.0X44.0X39.0CM
• Content: Front/Back panel,mortise,cylinder,keyx2,battery-pack,manual/Strike
  (no battery included, no card)

Key Card Door Lock System BENEFITS

• Finish:Chrome-plated wire drawing
• RFID MIFARE® technology,100,000 times write life for keycard, contactless reading keycard
• ANSI mortise
• Powered by AA battery, easy replace new
• Openings 20,000 times for one new battery pack
• Built-in buzzer and self-detect light
• Xeeder Hotel Lock System™ required
• Each Xeeder hotel lock equipped double clock, control the guests check-in and departure time accurately, Make your management of rooms easily.

Xeeder Technology Co.,Limited , founded in the year of 2006 in Shenzhen, China, is a world famous security enterprise who mainly produces smart card door lock which was already successfully applied with NFC function.

Xeeder continuously got the ISO9001:2000 Quality Management System Certification from 2009 to 2012 and supplied smart door lock for SIEMENS in 2010. 2011, Xeeder software interface was approved by Micros-Fidelio, the international most authoritative PMS system. We are one of the few lock manufacturers which build relationship with Micros in China Mainland.

Xeeder's core technology is always at the leading level in the world and we never stop the pursue of innovation and improvement on product, and that’s the soul of Xeeder’s prosperity and the key to becoming more and more popular in the world in the past 7 years. We are one of the first and fast few companies in China developing NFC technology in door lock system and we launched NFC hotel lock system ahead of other smart door lock manufacturers in China because of our relationship with NXP, the leading group in NFC. The Greater China CEO of NXP visited Xeeder in Shenzhen in December of 2012 and signed cooperative agreements with Xeeder to supply stable and long term technical support for each Xeeder NFC hotel door lock product.
