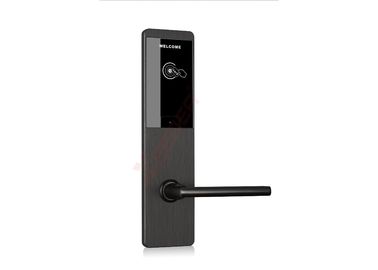

Black Card Access Door Lock System , Rfid Based Door Lock System 4.8V

I'm Online Chat Now

Black Card Access Door Lock System , Rfid Based Door Lock System 4.8V

China Black Card Access Door Lock System , Rfid Based Door Lock System 4.8V supplier

Large Image :  Black Card Access Door Lock System , Rfid Based Door Lock System 4.8V

Product Details:

Place of Origin: CHINA
Brand Name: Xeeder
Certification: CE/ISO/FCC/ROHS
Model Number: L1823H

Payment & Shipping Terms:

Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Standard Packing
Delivery Time: 30 working days after receive the buyer's advance payment
Payment Terms: L/C, T/T
Supply Ability: 10000 sets per month.
Contact Now
Detailed Product Description
Name: Card Access Door Lock System Color: Black
Power: LR6 (AA)battery X 4pcs Low Power Alarm Voltage: 4.8V
Card Support: MIFARE S50 Working Humidity: 15~85%RH
Working Tempreature: 0-60℃ Static Current: < 30uA

Black Card Access Door Lock System , Rfid Based Door Lock System 4.8V



Card Access Door Lock System Features



1. Advanced Software: management software supports multiple languages, and they can be switched
freely inside software, which is suitable for international hotel management. Hotel lock system Software
can work at the same time on different PCs with database shared, so does card issuing, which is
efficient, and speed up check in and check out in rush hours so as to satisfy guests.


2. Safe Data: key data in hotel lock system use 1-DES or 3-DES encryption, by IBM, DES is a standard
for commercial data encryption of US National Bureau of Standards, has always been popular and
played a important role in international secure communication. Basically customers don’t care if their
system use 3-DES encryption of not, even with encryption or not since products all good. But XEEDER
hotel lock system can promise not only normal use, but also security and reliability.



3. Open Software Interface: hotel lock system interface use Microsoft VC++ to develop, standard
open interface, support WIN32. SDK is also available, with details of specifications and parameters, and
examples for different development platforms such as PB, VB, DELPHI, and so on, easy to integrate with
other PMS.



Card Access Door Lock System SPECIFICATIONS



Name: Card Access Door Lock System Color: Black
Power: LR6 (AA)battery X 4pcs Low Power Alarm Voltage: 4.8V
Card Support: MIFARE S50 Working Humidity: 15~85%RH
Working Tempreature: 0-60℃ Static Current: < 30uA


Static current: < 30uA
Working current: < 150mA
Memory: 800 Transactions include Time/Date/Card ID/Card type/Room ID
Software: XEEDER Hotel lock system?
Gross Weight: 3.2KG
Package: 10pcs/Carton at 74.0X42.0X32.0CM
Content: Front/Back panel,mortise,cylinder,keyx2,battery-pack,manual/Strike
(no battery included, no card)





BENEFITS


ANSI mortise
Free-engage while locking
Powered by 4 pcs AA battery
Openings 20,000 times for one new battery pack
Audit trail records the latest 800 lock transactions.
Low Battery Voltage warning(beep and red light)
Passage mode activate by passage card for meeting case
Do not disturb(DND) function for hotels:While thumb turn is on from inside, the lock will refuse the keycard outside by show red light
Panic release function: the deadbolt and latch are automatically retracted by inside handle shaking to easy egress when emergency happens
Xeeder Hotel lock system(free) required
40mm-50mm thickness door
Each Xeeder hotel lock equipped double clock, control the guests check-in and departure time accurately, Make your management of rooms easily.





USEAGE



Guest card: Reception complete program Guest card by give a begin and expiry date for a room(rooms). Guest access room by read this card on lock
Master card:Hold by housekeeping to access to all rooms of hotels
Floor card: Hold by clean staff to enter the rooms in one floor.
Building card: Hold by manager to enter the rooms in one building
Passage card: Once this card been read on one door, this door could be acceess by without reading keycard
Emergency card: Enter the all rooms
