Intelligent Card Access Door Lock System / Remote Hotel Safe Lock System

Intelligent Card Access Door Lock System / Remote Hotel Safe Lock System

Card Access Door Lock System SPECIFICATIONS

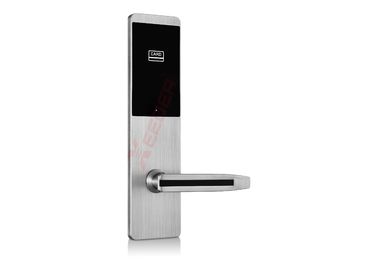

• Model: L1825N Card Access Door Lock System
• Communication: 13.56MHz RFID(with keycard)/infrared (with LMA or WDR)
• Card support: MIFARE® S50 plus S70
• Working Distance: 45mm Max
• Working Tempreature: 0-60℃
• Working Humidity: 15~85%RH
• Static current: < 30uA
• Working current: < 150mA
• Memory: 800 Transactions include Time/Date/Card ID/Card type/Room ID
• Software: XEEDER Hotel lock system™
• Gross Weight: 3.8KG

Card Access Door Lock System BENEFITS

• Powered by AA battery, easy replace new
• Openings 20,000 times for one new battery pack
• Built-in buzzer and self-detect light
• Low Battery Voltage warning(beep and red light)
• Free-engage handle while locking
• Audit trail records the latest 800 lock transactions.
• Passage mode activate by passage card for meeting case
• Do not disturb(DND) function for hotels:While thumb turn is on from inside, the lock will refuse the keycard outside by show red light
• Panic release function: the deadbolt and latch are automatically retracted by inside handle shaking to easy egress when emergency happens
• Xeeder Hotel Lock System™ required
• Each Xeeder hotel lock equipped double clock, control the guests check-in and departure time accurately, Make your management of rooms easily.

Card Access Door Lock System USEAGE

• Master card:Hold by housekeeping to access to all rooms of hotels
• Floor card: Hold by clean staff to enter the rooms in one floor.
• Building card: Hold by manager to enter the rooms in one building
• Passage card: Once this card been read on one door, this door could be acceess by without reading keycard
• Emergency card: Enter the all rooms
