RFID Card Hotel Lock System Intelligent Electromagnetic Decoding Circuit

I'm Online Chat Now

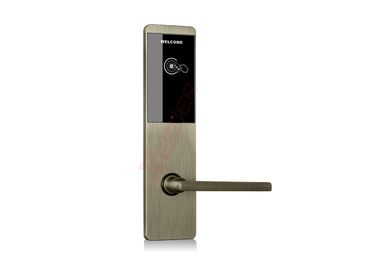

RFID Card Hotel Lock System Intelligent Electromagnetic Decoding Circuit

China RFID Card Hotel Lock System Intelligent Electromagnetic Decoding Circuit supplier

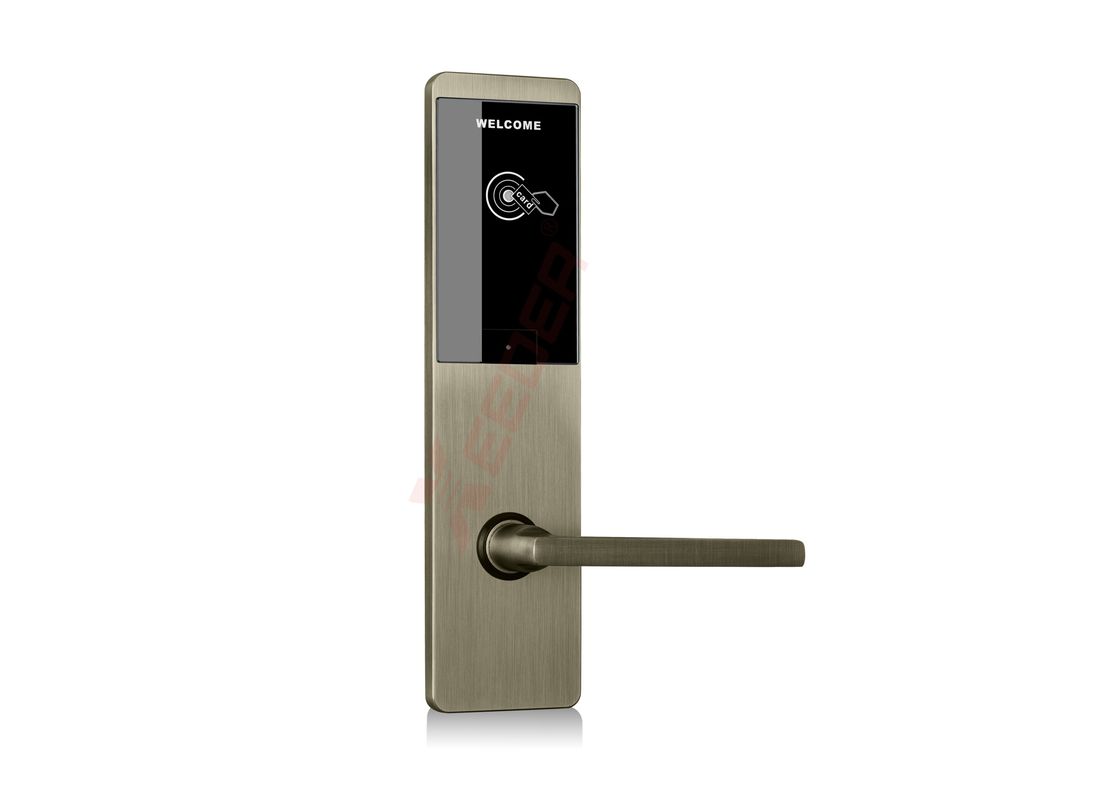

Large Image :  RFID Card Hotel Lock System Intelligent Electromagnetic Decoding Circuit

Product Details:

Place of Origin: CHINA
Brand Name: Xeeder
Certification: CE/ISO/FCC/ROHS
Model Number: L1823QG

Payment & Shipping Terms:

Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Standard Packing
Delivery Time: 30 working days after receive the buyer's advance payment
Payment Terms: L/C, T/T
Supply Ability: 10000 sets per month.
Contact Now
Detailed Product Description
Name: Hotel Lock System Color: Silver
Power: LR6 (AA)battery X 4pcs Low Power Alarm Voltage: 4.8V
Card Support: MIFARE S50 Working Humidity: 15~85%RH

RFID Card Hotel Lock System Intelligent Electromagnetic Decoding Circuit



Features



1. International Quality: Xeeder smart door lock, abiding by the strict quality requirements, with each
lock crafted, passing the test of testing center for quality of security & police electronic products under
the ministry of public security of P. R. CHINA, CE certificate, Malaysia fire test, and SASO, is reliable of
quality with global exports.



2. Originally Created The Variable Frequency Card-reading Technology: Intelligent
electromagnetic decoding circuit, automatic match of induction frequency, ensure correct card reading
even under worse situation. Based on proper induction distance and sensitivity, it guarantees low
consumption, and make battery work longer, 4pcs AA alkaline battery provide 18 months life normally.



3. Advanced Software: management software supports multiple languages, and they can be switched
freely inside software, which is suitable for international hotel management. Hotel lock system Software
can work at the same time on different PCs with database shared, so does card issuing, which is
efficient, and speed up check in and check out in rush hours so as to satisfy guests.



Characteristic:


1. Intelligent electromagnetic decoding circuit, automatic match of induction frequency, ensure correct
card reading even under worse situation. Based on proper induction distance and sensitivity, it
guarantees low consumption, and make battery work longer, technology safer.


2. Double clocks for hundred percent gurranty. Clocks inside and outside CPU, adjust with each other.
Why double clocks?
Clocks are indispensable part of hotel lock, they are so important that if clocks lost or stop the wrong time
will bring inconvenience to guests and loss to hotel. Once clocks go wrong, it might cause: guest cannot
open door, hotel cannot control the time for guest card to unlock, time information in opening records is a
mess and if stealing happened, things get worse.
The main reason that clocks lost or go incorrect due to special environment of hotel: interfere from
mobile phones, vacuum cleaner, etc; Components error, especially crystal oscillator; defects of clocks
components.
To solve this, XEEDER use double clocks, with special ‘clock visiting’ system as the following diagram:

Clock A use RTC, clock B use IC, when A stops, access signal finds A doesn’t equal B, then turn to clock B
and output the correct clock and adjust clock A, and pause A. Vice versa. It continuous visiting and
comparison and mutual adjust will ensure the correct time.


3. High capacity 800 opening records
XEEDER has assisted to independent research and continuous innovation so as to lead in the industry.
Only the Core technology can make sure the continuation and seriation of products, and it is the key to
company development. High capacity data recording started here, using new data structure, able to
monitor the records of door lock, and make the management safer.



SPECIFICATIONS



Model: L1823QG
Power: LR6 (AA)battery x 4pcs
Low power alarm voltage:4.8V
Communication: 13.56MHz RFID(with keycard)/infrared (with LMA or WDR)
Card support: MIFARE S50
Working Distance: 45mm Max
Working Tempreature: 0-60℃
Working Humidity: 15~85%RH
Static current: < 30uA
Working current: < 150mA
Memory: 800 Transactions include Time/Date/Card ID/Card type/Room ID
Software: XEEDER Hotel lock system?
Gross Weight: 3.2KG
Package: 10pcs/Carton at 74.0X42.0X32.0CM
Content: Front/Back panel,mortise,cylinder,keyx2,battery-pack,manual/Strike
(no battery included, no card)





BENEFITS



Matt finish stainless steel handle
RFID MIFARE? technology,100,000 times write life for keycard, contactless reading keycard

ANSI mortise
Free-engage while locking
Powered by 4 pcs AA battery
Openings 20,000 times for one new battery pack
Audit trail records the latest 800 lock transactions.
Low Battery Voltage warning(beep and red light)
Passage mode activate by passage card for meeting case
Do not disturb(DND) function for hotels:While thumb turn is on from inside, the lock will refuse the keycard outside by show red light
Panic release function: the deadbolt and latch are automatically retracted by inside handle shaking to easy egress when emergency happens
Xeeder Hotel lock system(free) required
40mm-50mm thickness door
Each Xeeder hotel lock equipped double clock, control the guests check-in and departure time accurately, Make your management of rooms easily.





USEAGE



Guest card: Reception complete program Guest card by give a begin and expiry date for a room(rooms). Guest access room by read this card on lock
Master card:Hold by housekeeping to access to all rooms of hotels
Floor card: Hold by clean staff to enter the rooms in one floor.
Building card: Hold by manager to enter the rooms in one building
Passage card: Once this card been read on one door, this door could be acceess by without reading keycard
Emergency card: Enter the all rooms
